SMA Sunny Tripower X 20 STP 20-50

Availability:

in stock

Delivery: choose country of delivery

Price: € 2,242.08

Net Price (without VAT)

Regular price:

2242.08

quantity pcs.

product unavailable

add to wish list

Producer:

ID: SMA-Sunny-Tripower-X-20-STP-20-50

Product

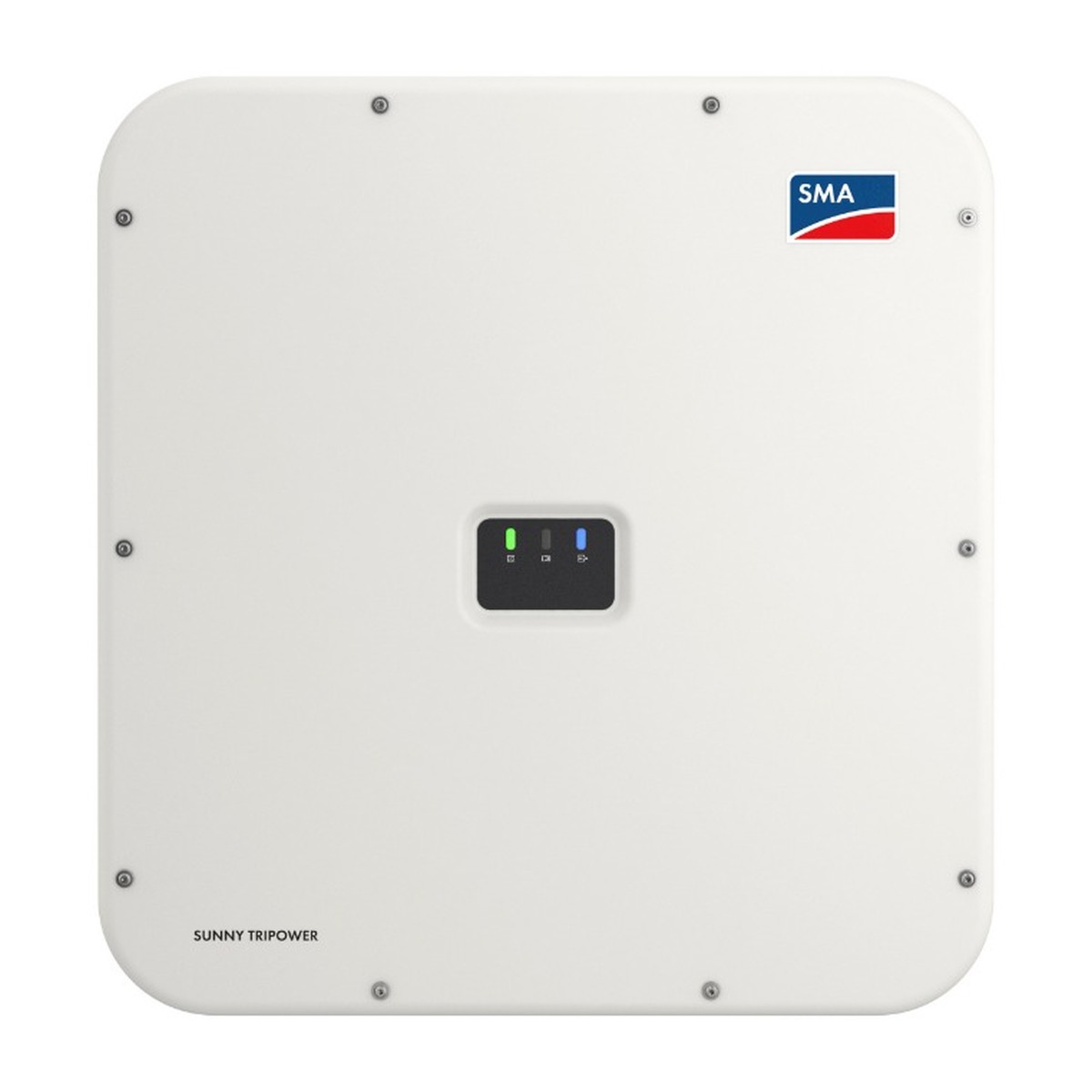

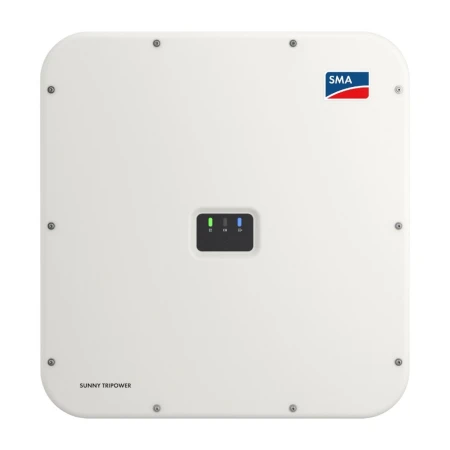

SMA Sunny Tripower X 20 STP 20-50

20kW 3P On-Grid PV Inverter

On-gridsystem
3phases
3xMPPT
30kWPV max
1000Vdcsystem voltage
IP65outdoor
5 yearswarranty
35kgpalletized shipping

Designed for commercial and large home PV systems, the SMA Sunny Tripower X 20 STP 20-50 (Sunny Tripower X) is a three-phase inverter with an integrated system manager for up to five inverters. SMA ArcFix detects electric arcs, and SMA ShadeFix increases yields in the event of partial shading.

SMA Solar Technology AG was founded in 1981 and is headquartered in Niestetal, Germany; its shares have been listed in the Prime Standard of the Frankfurt Stock Exchange since 2008.

Key features

Integrated system manager: monitoring and control for up to 5 inverters
SMA ArcFix arc-fault circuit interrupter
SMA ShadeFix yield optimization
I-V generator diagnostics
Triple MPP trackers
SMA Smart Connected

Technical data

AC output
Rated power / apparent power	20kW / 20kVA
Grid connection	3-phase, 230/400V, 50Hz
Max. output current	29A
PV input
Max. PV power	30kW
Max. DC voltage / MPPT range	1000V / 345–800V
MPPT	3x MPPT
Max. short-circuit current	37.5A per MPPT
General
Efficiency (max / EU)	98.2%
Protection	IP65
Dimensions / weight	728 × 762 × 266mm / 35kg
Operating temperature	-25 to +60°C
Warranty	5 years

Downloads

Datasheet

Datasheet Sunny Tripower X 20 STP 20-50EN1.2 MB

Technical Data

Power	20kW
Phases	3P
MPPT	3x MPPT
Ingress protection	IP65
