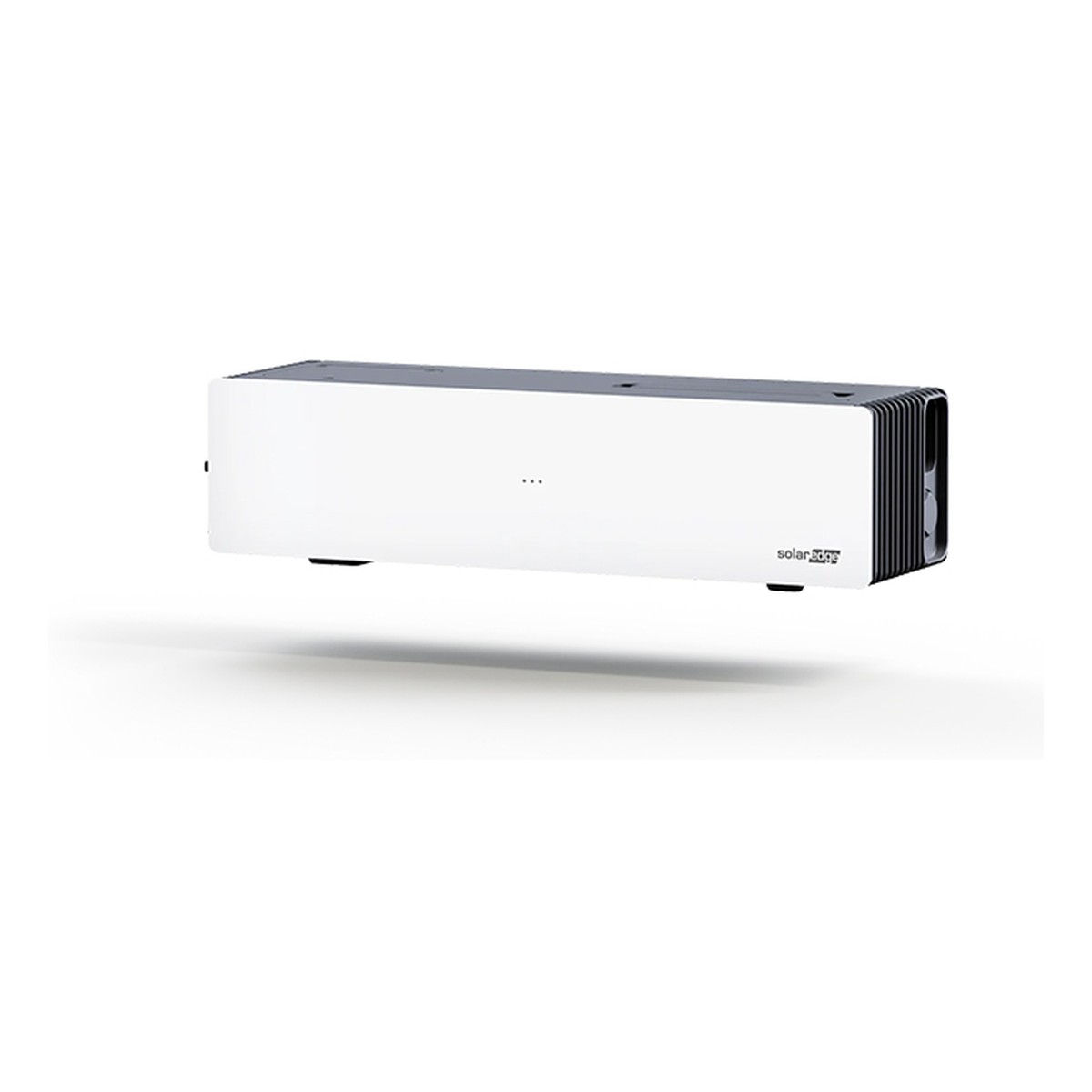

SolarEdge NX-LNK-4B-A-01

Availability:

in stock

Delivery: choose country of delivery

Price: € 676.09

Net Price (without VAT)

Regular price:

676.09

quantity pcs.

product unavailable

add to wish list

Producer:

ID: SolarEdge-NX-LNK-4B-A-01

Battery Link | SolarEdge Nexis Battery Stack | Inverters: Nexis single phase, Nexis three phase

SolarEdge Nexis single phase inverter (up to 4 Battery Blocks per Battery Stack)
SolarEdge Nexis three phase inverter (up to 16 Battery Blocks per inverter, max. 4 Battery Stacks)

Function	Battery Link of the SolarEdge Nexis battery system
Nominal voltage	450V / 750V (single / three phase)
Operating voltage range	370–950V
Battery modules per system	1–4
Communication	wired CAN (to inverter)
Protection	IP65
Ambient operating temperature	-20 to +55°C
Dimensions / weight	668 × 165 × 194mm / 15.8kg
Mounting	floor or wall mounting (wall bracket sold separately)
Certifications	UL 1973, UL 9540, UN38.3, IEC 62619, UL 9540A, IEC 62477-1
Warranty	10 years

Datasheet
