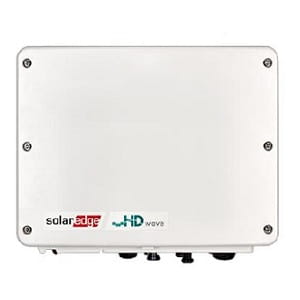

SolarEdge SE10000H-RW000BEN4

Availability: In stock
Limitations: no limit
Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery
Price: € 2,136.28 2136.28
Net Price (without VAT)
quantity pcs.

product unavailable

Producer: SolarEdge
Product code: SolarEdge SE10000H-RW000BEN4

Description


SolarEgde SE10000H-RW000BEN4

1-phase PV solar inverter 10kW (230V/50Hz) without display, with EnergyNet



Download


SolarEdge SE10000H - Datasheet

SolarEdge SE10000H - User Manual

 SolarEdge SE10000H - Quick installation guide

Technical Data

Model SE2200H | SE3000H | SE3500H | SE3680H | SE4000H | SE5000H | SE6000H |
Rated AC Power Output 2200 | 3000 | 3500 | 3680 | 4000 | 5000 | 6000VA
Maximum AC Power Output 2200 | 3000 | 3500 | 3680 | 4000 | 5000 | 6000VA
AC Output Voltage (Nominal) 220/230 Vac
AC Output Voltage Range 184-264.5 Vac
AC Frequency (Nominal) 50/60 ± 5Hz
Maximum Continuous Output Current 10 | 14 | 16 | 16 | 18.5 | 23 | 27.5 A
Utility Monitoring, Islanding Protection, Country Configurable Thresholds Yes
Recommended Maximum DC Power (Module STC) 3400 | 4650 | 5425 | 5700 | 6200 | 7750 | 9300 W
Transformer-less,Ungrounded Yes
Maximum Input Voltage 480Vdc
Nominal DC Input Voltage 380Vdc
Maximum Input Current 6.5 | 9 | 10 | 10.5 | 11.5 | 13.5 | 16.5 Adc
Reverse-Polarity Protection Yes
Maximum Inverter Efficiency 98.3 | 98.8 | 98.8 | 98.8 | 98.8 | 99 | 99 %
European Weighted Efficiency 98.3 | 98.8 | 99 %
Nighttime Power Consumption <2.5W
Supported Communication Interfaces RS485, Ethernet, Wi-Fi (optional), Cellular (optional), ZigBee (optional)
Safety IEC-62109-1/2
AC Output Cable Gland - diameter 9-16mm
DC Input 1 x MC4 | 2 x MC4 pair
Dimensions (HxWxD) 280x370x142 mm
Weight 7.8 | 7.8 | 7.8 | 7.8 | 7.8 | 9 | 10.6 kg
Cooling Natural Convection
Operating Temperature Range -20˚C...+60˚C ( -40˚C option)
Protection Rating IP65 - Outdoor and Indoor
Noise < 25 dBA
Maximum Power per String 5625 W
Number of Power Optimizers per String 8/9 to 20
