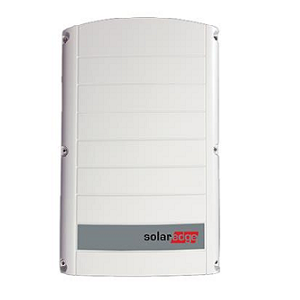

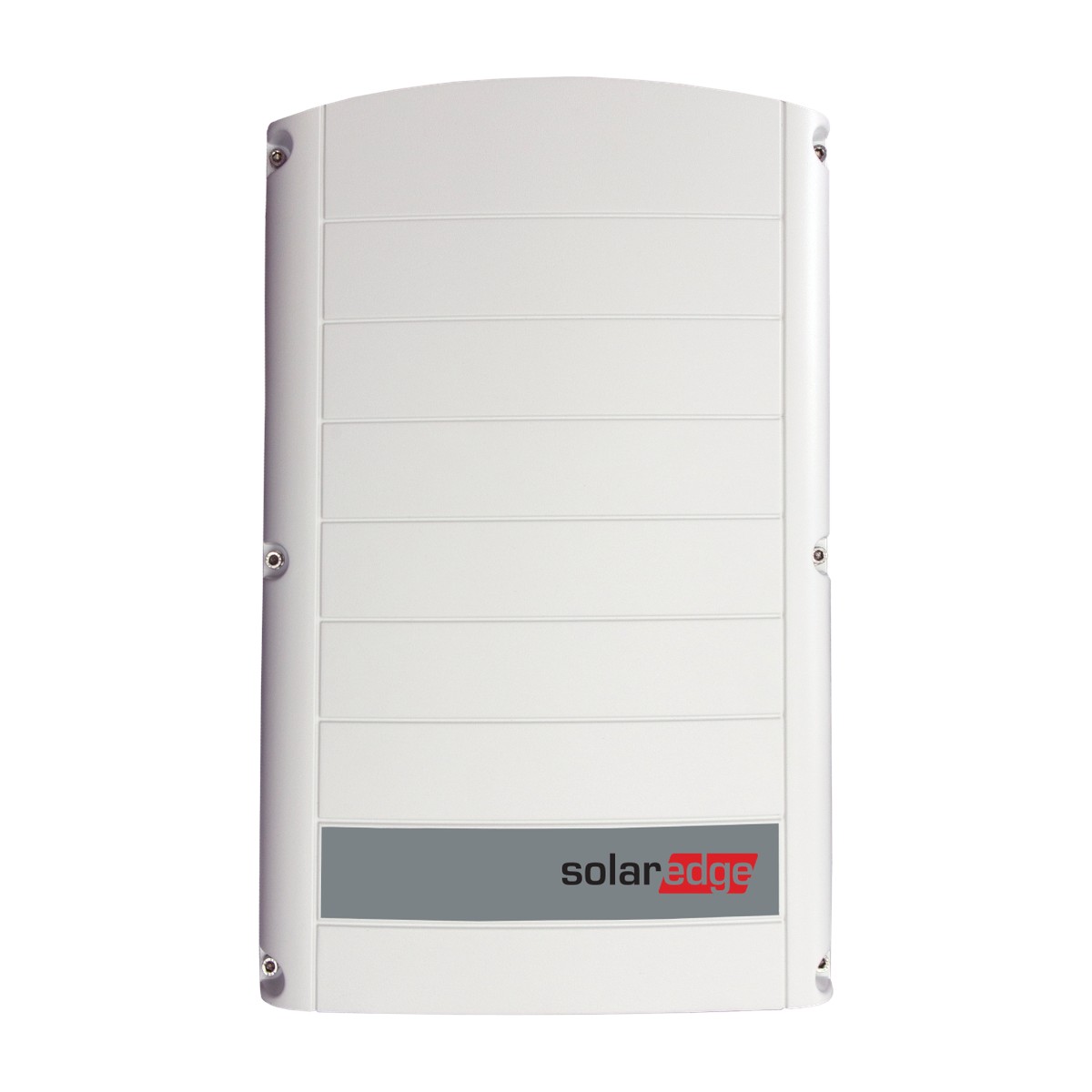

Solaredge SE10K-RW0TEBEN4 (3ph, without display, with EnergyNet)

Availability:

require pre order (waiting time ~4-6 weeks)

Limitations: max 3 units per order

Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery

Price: € 2,171.41 2171.41

Net Price (without VAT)

quantity pcs.

product unavailable

Producer:

Product code: Solaredge SE10K-RW0TEBEN4

SolarEdge SE10K-RW0TEBEN4

3-phase PV solar inverter 10kW (400V/50Hz)

Ideal solution for three phase installations with battery

noise level suitable for residential environments, no external fan
quick and easy inverter commissioning directly from a smartphone using the SE SetApp
bulit-in module-level monitoring
small, lightest in its class, easy to install
Smart Energy Management control

Download

SolarEdge SE10K-RW0TEBEN4 - Datasheet

SolarEdge SE10K-RW0TEBEN4 - User Manual

Model	SE3K \| SE4K \| SE5K \| SE6K \| SE7K \| SE8K \| SE9K \| SE10K \|
Rated AC Power Output	3000 \| 4000 \| 5000 \| 6000 \| 7000 \| 8000 \| 9000 \| 10000 V
Maximum AC Power Output	3000 \| 4000 \| 5000 \| 6000 \| 7000 \| 8000 \| 9000 \| 10000 V
AC Output Voltage (Nominal)	380/220 \| 400/230Vac
AC Output Voltage Range	184-264.5 Vac
AC Frequency (Nominal)	50/60 ± 5Hz
Maximum Continuous Output Current	5 \| 6.5 \|8 \| 10 \| 11.5 \| 13 \| 14.5 \| 16 A
Grids Supported-Three Phase	3/N/PE \| (WYE with Neutral)
Utility Monitoring, Islanding Protection, Country Configurable Thresholds	Yes
Recommended Maximum DC Power (Module STC)	4050 \| 5400 \| 6750 \| 8100 \| 9450 \| 10800 \| 12150 \| 13500 W
Transformer-less,Ungrounded	Yes
Maximum Input Voltage	900Vdc
Nominal DC Input Voltage	750Vdc
Maximum Input Current	5 \| 7 \| 8.5 \| 10 \| 12 \| 13.5 \| 15 \| 16.5 Adc
Reverse-Polarity Protection	Yes
Maximum Inverter Efficiency	98%
European Weighted Efficiency	96.7 \| 97.3 \| 97.3 \| 97.3 \| 97.4 \| 97.6 \| 97.5 \| 97.6 %
Nighttime Power Consumption	<2.5W
Supported Communication Interfaces	RS485, Ethernet, ZigBee (optional), Wi-Fi (requires antenna) , Cellular (optional)
Safety	IEC-62103 (EN50178), IEC-62109
RoHS	Yes
AC Output	Cable Gland - diameter 15-21mm
DC Input	2 MC4 pairs
Dimensions (HxWxD)	540x315x191mm
Weight	16.4 kg
Cooling	Internal Fan
Operating Temperature Range	-40˚C...+60˚C
Protection Rating	IP65 - Outdoor and Indoor
Noise	< 40 dBA
