Solaredge SE10K-RWS48BEN4

Availability:

require pre order (waiting time ~4-6 weeks)

Limitations: no limit

Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery

Price: € 3,262.02 3262.02

Net Price (without VAT)

quantity pcs.

product unavailable

Producer:

Product code: Solaredge SE10K-RWS48BEN4

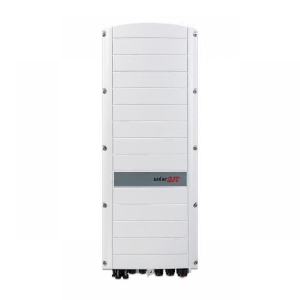

SolarEdge SE10K-RWS48BEN4

3-phase PV solar inverter 10kW (400V/50Hz)

Ideal solution for three phase installations with battery

simple installation with single inverter for managing both PV production battery storage
more energy using DC-coupled solution architecture tjat stores PV power directly to the battery without AC converion losses
quick and easy inverter commissioning directly from a smartphone using the SE SetApp
designet to eliminate hight voltage during installation, maintenance or firefighting for enhanced safty
bulit-in module-level monitoring and full visibility of battery status , PV productionand self consumption data
allows connection of low voltage 48V batteries from multiple battery vendors to provide greatier flexibility

Download

SolarEdge SE10K-RWS48BEN4 - Datasheet

SolarEdge SE10K-RWS48BEN4 - User Manual

Model	SE5K-RWS48BEN4 \| SE7K-RWS48BEN4 \| SE8K-RWS48BEN4 \| SE10K-RWS48BEN4 \|
Rated AC Power Output	5000 \| 7000 \| 8000 \| 10000 V
Maximum AC Power Output	5000 \| 7000 \| 8000 \| 10000 V
AC Output Voltage (Nominal)	380/220 \| 400/230Vac
AC Output Voltage Range	184-264.5 Vac
AC Frequency (Nominal)	50/60 ± 5Hz
Maximum Continuous Output Current	8 \| 11.5 \| 13 \| 16 A
Grids Supported-Three Phase	3/N/PE \| (WYE with Neutral)
Utility Monitoring, Islanding Protection, Country Configurable Thresholds	Yes
Recommended Maximum DC Power (Module STC)	6750 \| 9450 \| 10800 \| 13500 W
Transformer-less,Ungrounded	Yes
Maximum Input Voltage	900Vdc
Nominal DC Input Voltage	750Vdc
Maximum Input Current	8.5 \| 12 \| 13.5 \| 16.5 Adc
Reverse-Polarity Protection	Yes
Maximum Inverter Efficiency	98%
European Weighted Efficiency	97.3 \| 97.4 \| 97.6 \| 97.6 %
Supported Communication Interfaces	2 x RS485, Ethernet, Wi-Fi(2) , ZigBee for Smart Energy (optional), Cellular (optional)
Safety	IEC-62109
AC Output	Cable Gland - diameter 15-21mm
DC Input	2 MC4 pairs
Dimensions (HxWxD)	853x316x193 mm
Weight	37 kg
Cooling	Internal and external fans
Operating Temperature Range	-40˚C...+60˚C
Protection Rating	IP65 - Outdoor and Indoor
Noise	<50 dBA
