Solaredge SE3K-RWBTEBEN4

Availability: In stock

Limitations: max 3 units per order

Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery

Price: € 1,611.04 1611.04

Net Price (without VAT)

quantity pcs.

product unavailable

Producer:

Product code: SE3K-RWBTEBEN4

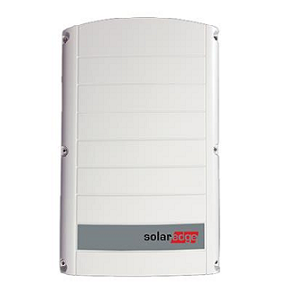

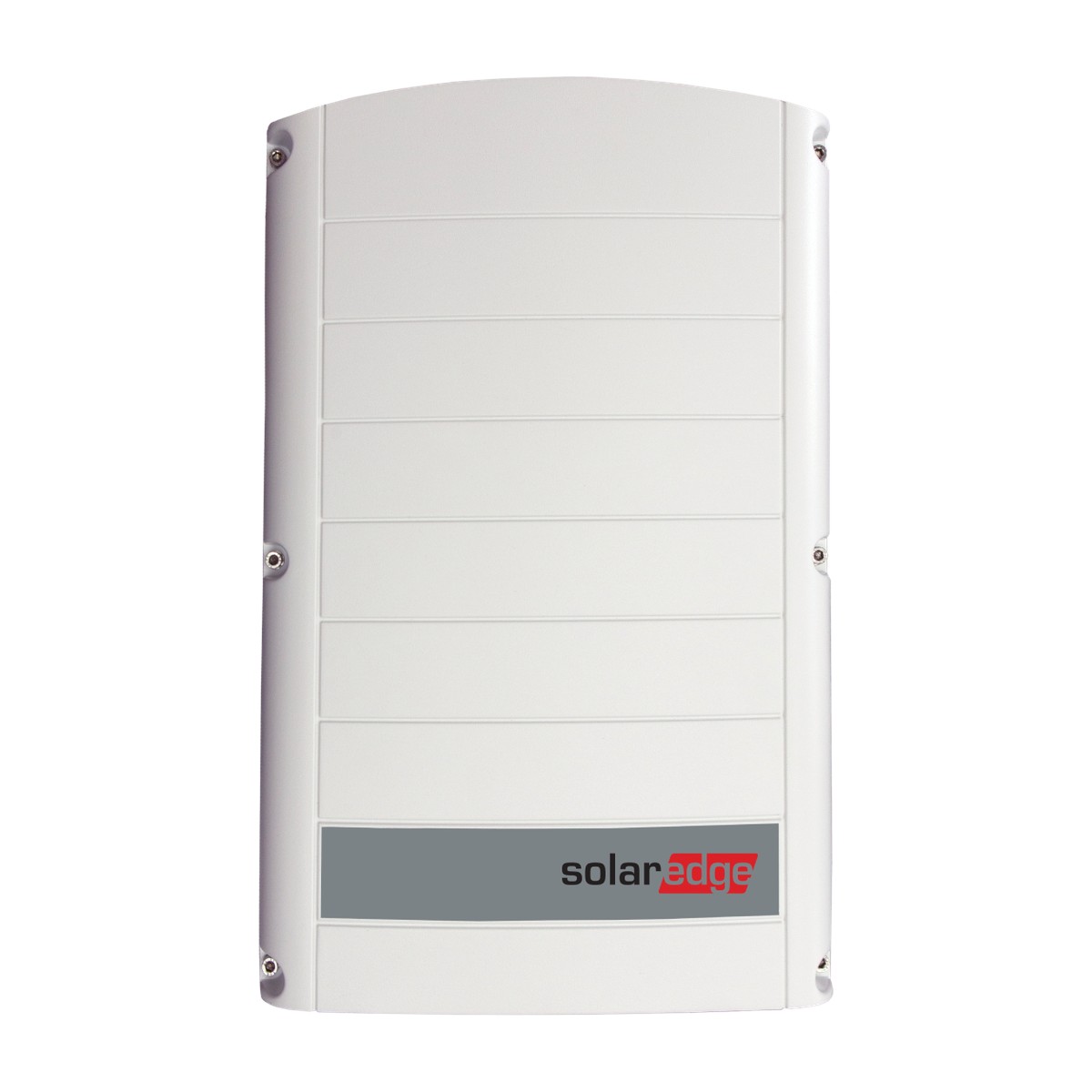

SolarEgde SE3K-RWBTEBEN4

3-phase PV solar inverter 3kW (400V/50Hz)

The ideal solution for small-scale residential PV systems

Greater design flexibility by enabling significantly shorter strings for low power three phase PV systems
Optimized for installations with complex roofs (multi-facets and different orientations)
Supports optional smart energy devices and expansion of system capabilities
Single vendor solution for seamless operation of all system components, and one address for warranty and service issues
Built-in module-level monitoring for greater visibility into system performance
Excellent reliability with standard 12-year warranty (extendable to 20 or 25 years)
Advanced safety features, including touch-safe DC voltage when the inverter is off or disconnected
Quick inverter commissioning directly from the SetApp smartphone app Suitable for outdoor or indoor installations

Download

SolarEdge SE3K-RWBTEBEN4 - Datasheet

SolarEdge SE3K-RWBTEBEN4 - User Manual

Model	SE3K-RWBTEBEN4 \| SE4K-RWBTEBEN4 \| SE5K-RWBTEBEN4
Rated AC Power Output	3000 \| 4000 \| 5000VA
Maximum AC Power Output	3000 \| 4000 \| 5000VA
AC Output Voltage (Nominal)	380/220 \| 400/230Vac
AC Output Voltage Range	264.5 Vac
AC Frequency (Nominal)	50/60 ± 5Hz
Maximum Continuous Output Current	5 \| 6.5 \| 8 A
Utility Monitoring, Islanding Protection, Country Configurable Thresholds	Yes
Recommended Maximum DC Power (Module STC)	4050 \| 5400 \| 6750 W
Maximum Input Voltage	450 Vdc
Nominal DC Input Voltage	375Vdc
Maximum Input Current	8.5 \| 11.5 \| 14 Adc
Reverse-Polarity Protection	Yes
Maximum Inverter Efficiency	97.8%
European Weighted Efficiency	94.6 \| 95.7 \| 96.3 %
Nighttime Power Consumption	<4W
Supported Communication Interfaces	2 x RS485, Ethernet, Wi-Fi(2) , ZigBee for Smart Energy (optional), Cellular (optional)
Safety	IEC-62109-1/2
AC Output	Cable Gland - diameter 15-21mm
DC Input	2 MC4 pairs
Dimensions (HxWxD)	540x315x260mm
Weight	24.5 kg
Cooling	Natural Convection
Operating Temperature Range	-40˚C...+60˚C
Protection Rating	IP65 - Outdoor and Indoor
Noise	<50 dBA
Maximum Power per String	5625 W
Number of Power Optimizers per String	8/9 to 20
