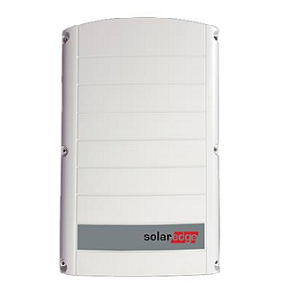

Solaredge SE5K-RWBTEBEN4

Availability: require pre order (waiting time ~4-6 weeks)
Limitations: no limit
Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery
Price: € 1,976.07 1976.07
Net Price (without VAT)
quantity pcs.

product unavailable

Producer: SolarEdge
Product code: SE5K-RWBTEBEN4

Description


SolarEgde SE5K-RWBTEBEN4

3-phase PV solar inverter 5kW (400V/50Hz)



The ideal solution for small-scale residential PV systems

  • Greater design flexibility by enabling significantly shorter strings for low power three phase PV systems
  • Optimized for installations with complex roofs (multi-facets and different orientations)
  • Supports optional smart energy devices and expansion of system capabilities
  • Single vendor solution for seamless operation of all system components, and one address for warranty and service issues
  • Built-in module-level monitoring for greater visibility into system performance
  • Excellent reliability with standard 12-year warranty (extendable to 20 or 25 years)
  • Advanced safety features, including touch-safe DC voltage when the inverter is off or disconnected
  • Quick inverter commissioning directly from the SetApp smartphone app Suitable for outdoor or indoor installations



Download


SolarEdge SE5K-RWBTEBEN4 - Datasheet

SolarEdge SE5K-RWBTEBEN4 - User Manual

Technical Data

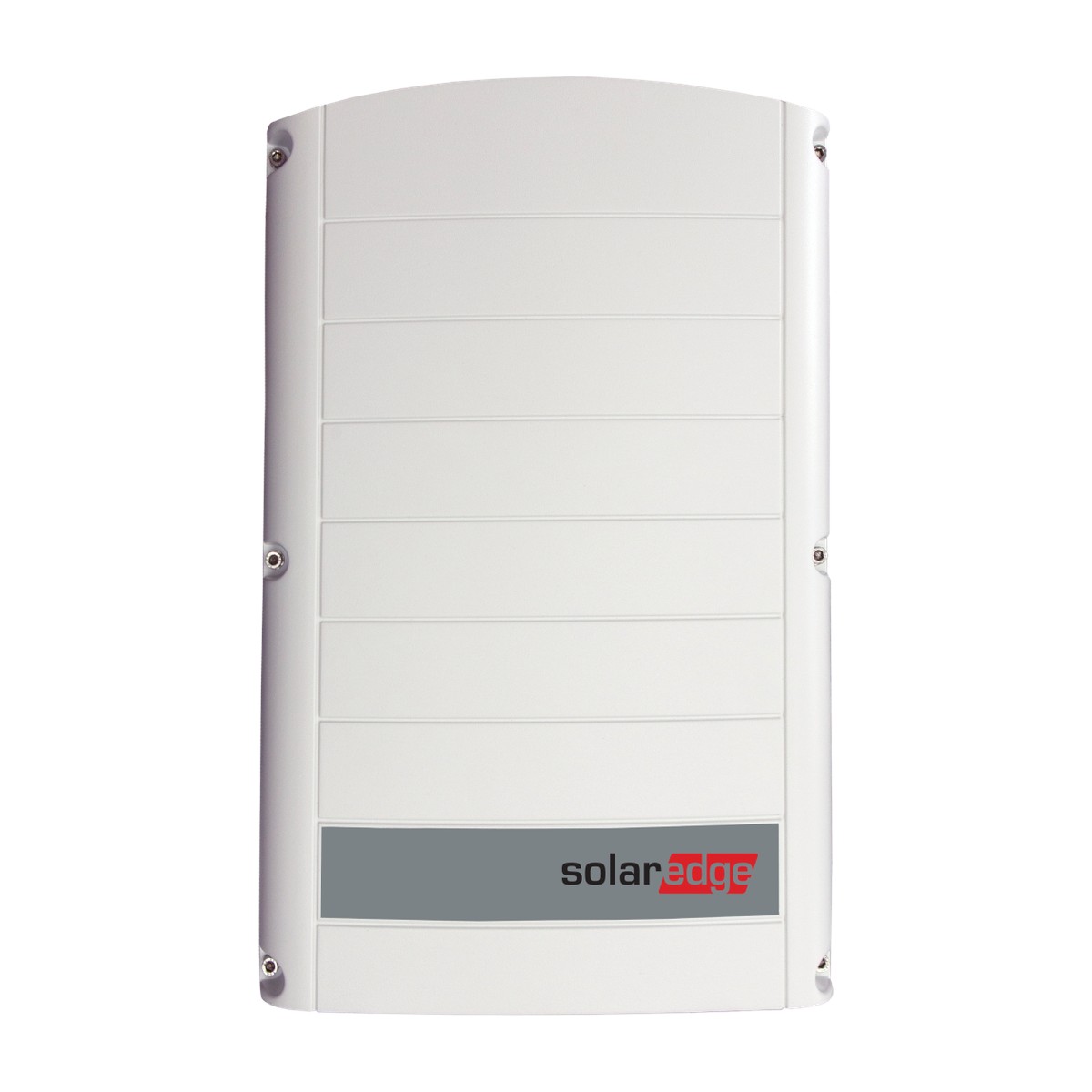

Model SE3K-RWBTEBEN4 | SE4K-RWBTEBEN4 | SE5K-RWBTEBEN4
Rated AC Power Output 3000 | 4000 | 5000VA
Maximum AC Power Output 3000 | 4000 | 5000VA
AC Output Voltage (Nominal) 380/220 | 400/230Vac
AC Output Voltage Range 264.5 Vac
AC Frequency (Nominal) 50/60 ± 5Hz
Maximum Continuous Output Current 5 | 6.5 | 8 A
Utility Monitoring, Islanding Protection, Country Configurable Thresholds Yes
Recommended Maximum DC Power (Module STC) 4050 | 5400 | 6750 W
Maximum Input Voltage 450 Vdc
Nominal DC Input Voltage 375Vdc
Maximum Input Current 8.5 | 11.5 | 14 Adc
Reverse-Polarity Protection Yes
Maximum Inverter Efficiency 97.8%
European Weighted Efficiency 94.6 | 95.7 | 96.3 %
Nighttime Power Consumption <4W
Supported Communication Interfaces 2 x RS485, Ethernet, Wi-Fi(2) , ZigBee for Smart Energy (optional), Cellular (optional)
Safety IEC-62109-1/2
AC Output Cable Gland - diameter 15-21mm
DC Input 2 MC4 pairs
Dimensions (HxWxD) 540x315x260mm
Weight 24.5 kg
Cooling Natural Convection
Operating Temperature Range -40˚C...+60˚C
Protection Rating IP65 - Outdoor and Indoor
Noise <50 dBA
Maximum Power per String 5625 W
Number of Power Optimizers per String 8/9 to 20
