Solaredge SE5K-RWS48BEN4

Solaredge SE5K-RWS48BEN4
  • new
Availability: In stock
Limitations: no limit
Delivery: Approx delivery costs, please choose your country of delivery choose country of delivery
Price: € 2,815.01 2815.01
Net Price (without VAT)
quantity pcs.

product unavailable

Producer: SolarEdge
Product code: Solaredge SE5K-RWS48BEN4

Description

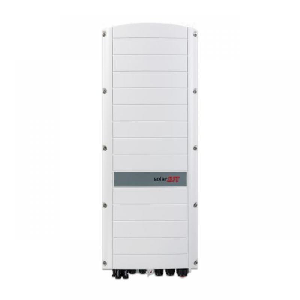

SolarEdge SE5K-RWS48BEN4

3-phase PV solar inverter 5kW (400V/50Hz)



 Ideal solution for three phase installations with battery

  • simple installation with single inverter for managing both PV production battery storage
  • more energy using DC-coupled solution architecture tjat stores PV power directly to the battery without AC converion losses
  • quick and easy inverter commissioning directly from a smartphone using the SE SetApp
  • designet to eliminate hight voltage during installation, maintenance or firefighting  for enhanced safty
  • bulit-in module-level monitoring and full visibility of battery status , PV productionand self consumption data
  • allows connection of low voltage 48V batteries from multiple battery vendors to provide greatier flexibility



Download


SolarEdge SE5K-RWS48BEN4 - Datasheet

SolarEdge SE5K-RWS48BEN4 - User Manual

Technical Data

Model SE5K-RWS48BEN4 | SE7K-RWS48BEN4 | SE8K-RWS48BEN4 | SE10K-RWS48BEN4 |
Rated AC Power Output 5000 | 7000 | 8000 | 10000 V
Maximum AC Power Output 5000 | 7000 | 8000 | 10000 V
AC Output Voltage (Nominal) 380/220 | 400/230Vac
AC Output Voltage Range 184-264.5 Vac
AC Frequency (Nominal) 50/60 ± 5Hz
Maximum Continuous Output Current 8 | 11.5 | 13 | 16 A
Grids Supported-Three Phase 3/N/PE | (WYE with Neutral)
Utility Monitoring, Islanding Protection, Country Configurable Thresholds Yes
Recommended Maximum DC Power (Module STC) 6750 | 9450 | 10800 | 13500 W
Transformer-less,Ungrounded Yes
Maximum Input Voltage 900Vdc
Nominal DC Input Voltage 750Vdc
Maximum Input Current 8.5 | 12 | 13.5 | 16.5 Adc
Reverse-Polarity Protection Yes
Maximum Inverter Efficiency 98%
European Weighted Efficiency 97.3 | 97.4 | 97.6 | 97.6 %
Supported Communication Interfaces 2 x RS485, Ethernet, Wi-Fi(2) , ZigBee for Smart Energy (optional), Cellular (optional)
Safety IEC-62109
AC Output Cable Gland - diameter 15-21mm
DC Input 2 MC4 pairs
Dimensions (HxWxD) 853x316x193 mm
Weight 37 kg
Cooling Internal and external fans
Operating Temperature Range -40˚C...+60˚C
Protection Rating IP65 - Outdoor and Indoor
Noise <50 dBA
