Solplanet ASW10K-LT-G2 Pro AFCI

Availability:

in stock

Delivery: choose country of delivery

Price: € 650.21

Net Price (without VAT)

Regular price:

650.21

quantity pcs.

product unavailable

add to wish list

Producer: Solplanet

ID: Solplanet ASW 10K-LT-G2 Pro AFCI

Product

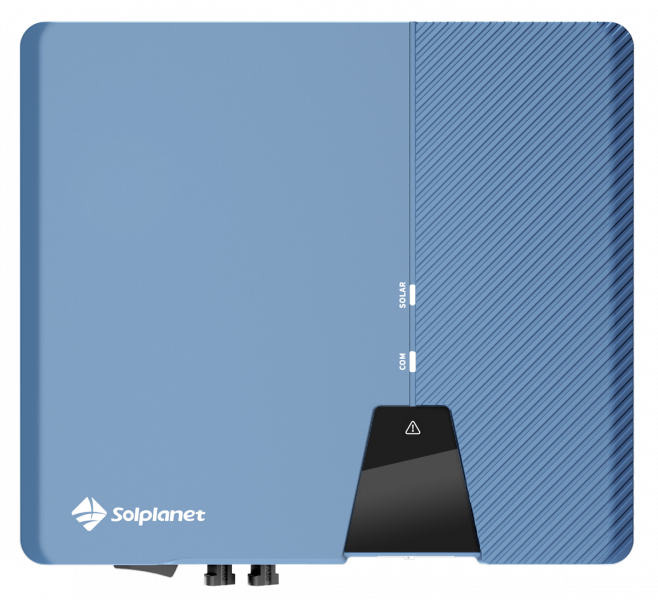

Solplanet ASW10K-LT-G2 Pro AFCI

10kW 3P On-Grid PV Inverter

On-gridsystem
3phases
2xMPPT
15kWPV max
1100Vdcsystem voltage
IP66outdoor

The Solplanet ASW10K-LT-G2 Pro AFCI (ASW LT-G2 Pro) is a three-phase on-grid inverter for quick installation with standard tools. It supports 150% PV array oversizing, is IP66 rated for indoor and outdoor use and includes ShadeSol for non-ideal conditions.

Solplanet is the brand of AISWEI Technology, which became an independent company in 2019 (formerly part of the SMA Group).

Key features

Quick installation with standard tools
Commissioning and monitoring via Solplanet App
150% PV array oversizing
IP66 for indoor and outdoor use
Dual MPP trackers
ShadeSol for non-ideal conditions

Technical data

AC output
Rated power / apparent power	10kW / 10kVA
Grid connection	3-phase, 230/400V
Max. output current	16A
PV input
Max. PV power	15kW
Max. DC voltage / MPPT range	1100V / 150–1000V
MPPT	2x MPPT, max. 20/16A per MPPT
Max. short-circuit current	30/25A per MPPT
General
Efficiency (max / EU)	98.6% / 98.2%
Protection	IP66
Dimensions / weight	503 × 435 × 183mm / 16kg
Operating temperature	-25 to +60°C

Downloads

Datasheet

Datasheet ASW10K-LT-G2 Pro AFCIEN426 KB

Technical Data

Power	10kW
Type	On-Grid
Phases	3P
MPPT	2x MPPT

Safety
