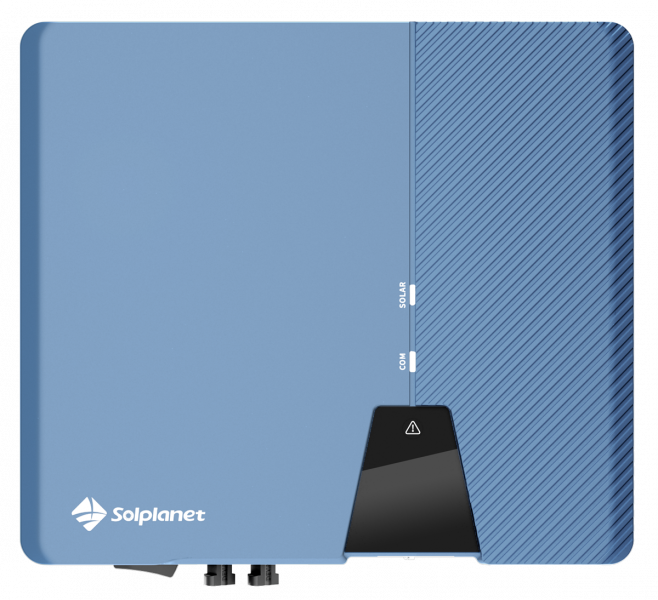

Solplanet ASW80K-LT

Availability:

in stock

Delivery: choose country of delivery

Price: € 2,198.65

Net Price (without VAT)

Regular price:

2198.65

quantity pcs.

product unavailable

add to wish list

Producer: Solplanet

ID: Solplanet ASW 80K-LT AFCI

80kW 3P On-Grid PV Inverter

Solplanet is the brand of AISWEI Technology, which became an independent company in 2019 (formerly part of the SMA Group).

AC output
Rated power / apparent power	80kW
Grid connection	3-phase, 230/400V, 50/45/55/60/55/65Hz
Max. output current	127.0A
PV input
Max. PV power	120kW
Max. DC voltage / MPPT range	1100V / 200–1000V
MPPT	8x MPPT, 2 strings per MPPT, max. 32A per MPPT
Max. short-circuit current	48A per MPPT
General
Efficiency (max / EU)	98.6% / 98.4%
Protection	IP66, SPD: DC Type II, AC Type II
Dimensions / weight	984 × 640 × 330mm / 86kg
Operating temperature	-25 to +60°C
Communication	RS485 ●, Wi-Fi ●, LAN ●, 4G ○
Certificates	CE, IEC 62109-1/2, IEC 61727, IEC 62116, IEC 61683, EN 50549-1/2, VDE 4105
