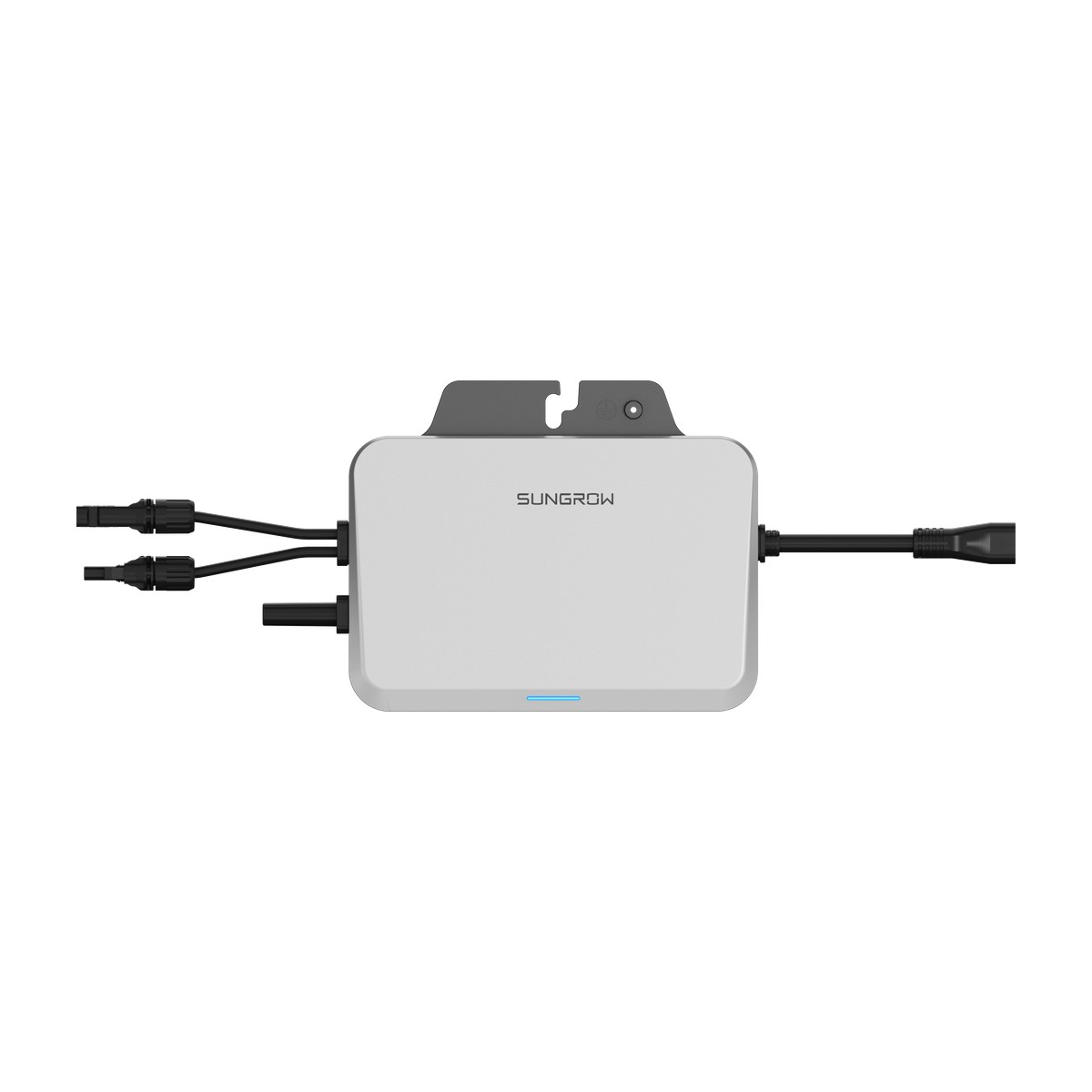

Sungrow S450S

Availability:

in stock

Delivery: choose country of delivery

Price: € 121.95

Net Price (without VAT)

Regular price:

121.95

quantity pcs.

product unavailable

add to wish list

Producer:

ID: S450S

450W Microinverter

Recommended PV module power range	375W–570W
Max. PV input voltage	60V
Min. PV input voltage / Startup input voltage	16V / 22V
MPPT voltage range	16V–60V
No. of independent MPP inputs	1
Max. PV input current	16A × 1
Max. DC short-circuit current	20A × 1
Grid Type	Single phase
Rated AC output power	450W
Max. AC output apparent power	450 VA
Max. AC output current	2.1A
Rated AC output current (at 230 V)	2.0A
Rated AC voltage	220V / 230V / 240V
AC voltage range	154V–277V
Rated grid frequency	50Hz / 60Hz
Harmonic (THD)	< 5% (at rated power)
Power factor at rated power / Adjustable power factor	> 0.99 / 0.8 leading–0.8 lagging
Maximum units per branch (2.5 mm²)	10
Max. efficiency	96.2%
European efficiency	95.4%
Grid monitoring	Yes
Leakage current protection	Yes
PV module-level monitoring	Yes
Rapid shutdown	Yes
Surge protection	AC type II
Dimensions (W × H × D)	238 × 168 × 42mm
Mounting method	Bracket Mounted
Topology	High Frequency Transformers
Degree of protection	IP67
Night power consumption	< 50 mW
Operating ambient temperature range	-40°C to 65°C
Allowable relative humidity range (non-condensing)	100%
Cooling method	Natural cooling
Max. operating altitude	2000 m
Display	LED
Communication	WLAN
DC connection type	Stäubli MC4
AC connection type	Plug and play connector
Certification compliance	EN / IEC 62109-1/-2, EN / IEC 61683, EN 50530, EN / IEC 61000-6-1/-2/-3/-4, VDE 4105, VDE 0126, UNE217002, CEI 0-21, IEC 60529, IEC 62116, EN 50549, PSE RFG, EN 301489, EN 300328, EN / IEC 62311, ETSI EN 303 645
Weight	2.5kg

Datasheet
