Sungrow SG33CX

Availability:

in stock

Delivery: choose country of delivery

Price: € 1,858.22

Net Price (without VAT)

Regular price:

1858.22

quantity pcs.

product unavailable

add to wish list

Producer:

ID: Sungrow-SG33CX

Product

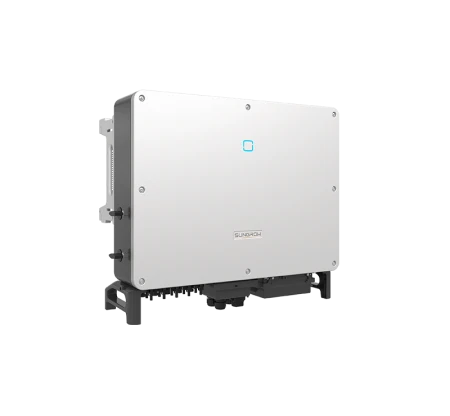

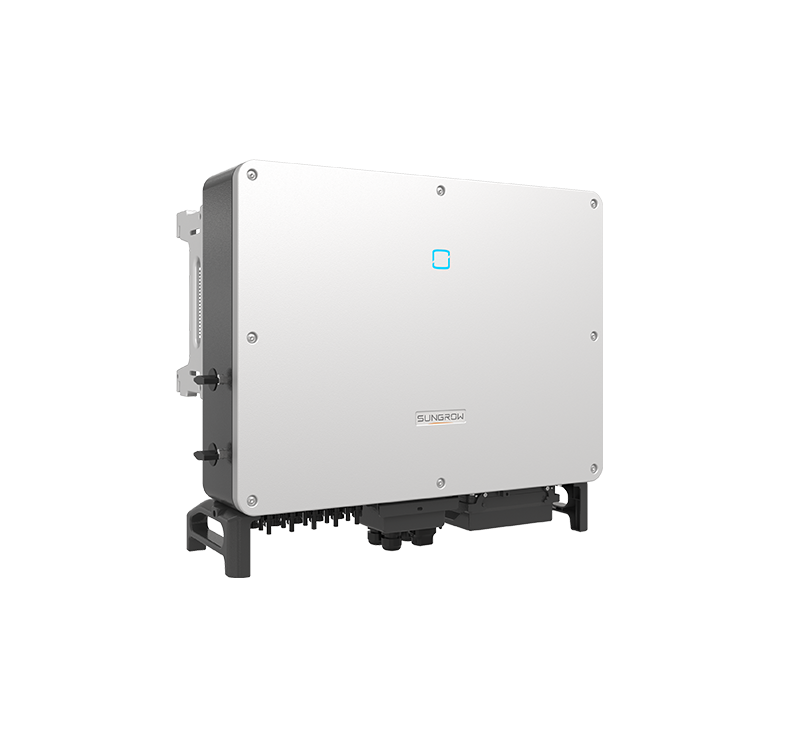

Sungrow SG33CX

33kW 3P On-Grid PV Inverter

On-gridsystem
3phases
3xMPPT
1100Vdcsystem voltage
IP66outdoor
50kgpalletized shipping

The Sungrow SG33CX (SG-CX) is a multi-MPPT string inverter for 1000 Vdc systems, compatible with bifacial modules. It has built-in PID recovery and smart I-V curve diagnosis, with IP66 and C5 anti-corrosion protection.

Sungrow, founded in 1997 in Hefei, China, has been listed on the Shenzhen Stock Exchange (300274) since 2011.

Key features

Compatible with bifacial modules
Built-in PID recovery
Smart I-V curve diagnosis
Fuse-free design with smart string current monitoring
IP66 and C5 anti-corrosion
Type II SPD for DC and AC (DC Type I+II optional)
Triple MPP trackers

Technical data

AC output
Rated power / apparent power	33kW
Grid connection	3-phase, 230/400V, 3L/N/PE, 50Hz
Max. output current	55.2A
PV input
Max. DC voltage / MPPT range	1100V / 200–1000V
MPPT	3x MPPT, 2 strings per MPPT, max. 3/26A per MPPT
Max. short-circuit current	3/40A per MPPT
General
Efficiency (max / EU)	98.6%
Protection	IP66, AFCI: Optional
Dimensions / weight	702 × 595 × 310mm / 50kg
Operating temperature	-30 to +60°C
Communication	RS485 / Optional: WLAN, Ethernet

Downloads

Datasheet

Datasheet SG33CXEN329 KB

Technical Data

Power	33kW
Phases	3P
MPPT	3x MPPT
AFCI	Optional
Ingress protection	IP66
