Producer:

ID: Sungrow-SH10T

Product

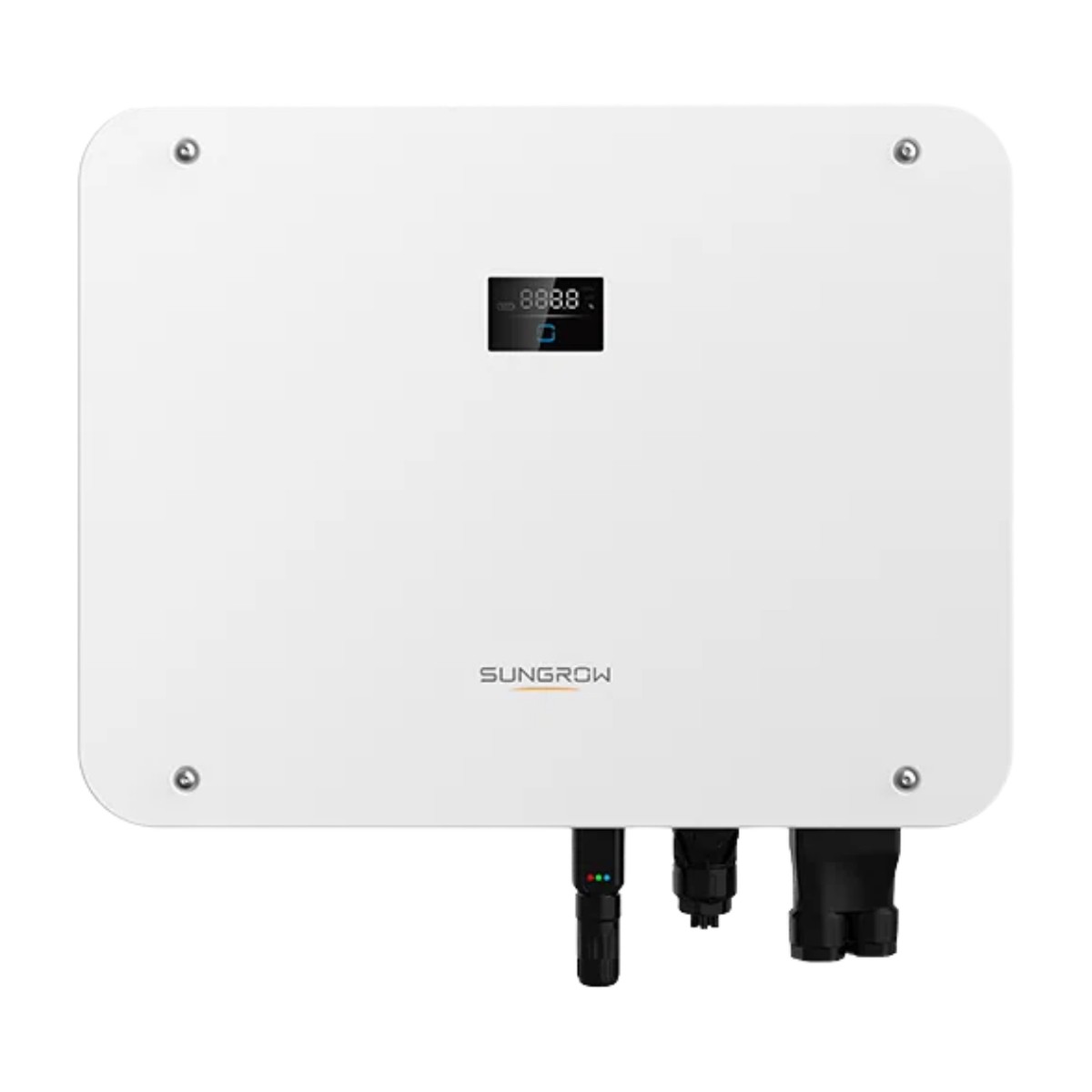

Sungrow SH10T

10kW 3P Hybrid PV Inverter

Hybridsystem
3phases
HVbattery
2xMPPT
20kWPV max
1000Vdcsystem voltage
IP65outdoor
32kgpalletized shipping

Designed for whole home backup, the Sungrow SH10T (SH-T series) is a three-phase hybrid inverter with a built-in 63A bypass and 10 ms seamless switching. It supports 100% unbalanced output and precise AFCI, with quiet operation for indoor or outdoor installation.

Sungrow, founded in 1997 in Hefei, China, has been listed on the Shenzhen Stock Exchange (300274) since 2011.

Key features

Built-in 63A bypass for whole home backup
10 ms seamless switch
100% unbalanced output in backup and on-grid mode
Max. 16A DC input current per string
50A fast charge/discharge current
Precise AFCI
IP65 / C5
Dual MPP trackers

Battery compatibility

Battery: Lithium
Battery voltage: 100–700V

Technical data

AC output
Rated power / apparent power	9.999kW / 9.999kVA
Grid connection	3-phase, 230/400V, 3L/N/PE
Max. output current	15.2A
PV input
Max. PV power	20kW
Max. DC voltage / MPPT range	1000V / 150–950V
MPPT	2x MPPT, 2/1 strings per MPPT, max. 32/16A per MPPT
Max. short-circuit current	40/20A per MPPT
Battery
Compatible batteries	Lithium, 100–700V
Backup	10kW
General
Efficiency (max / EU)	98% / 97.5%
Protection	IP65, AFCI: Yes, SPD: DC Type II, AC Type II
Dimensions / weight	620 × 480 × 195mm / 32kg
Communication	RS485, WLAN, Ethernet, CAN

Downloads

Datasheet

Datasheet SH10TEN186 KB

Technical Data

Power	10kW
Phases	3P
MPPT	2x MPPT
Backup	Yes
