TW Solar TWMNF-66HD720W

Availability:

in stock

Delivery: choose country of delivery

Price: € 104.26

Net Price (without VAT)

Regular price:

104.26

* Quantity:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer:

ID: TW-SOLAR-TWMNF-66HD720W

Product

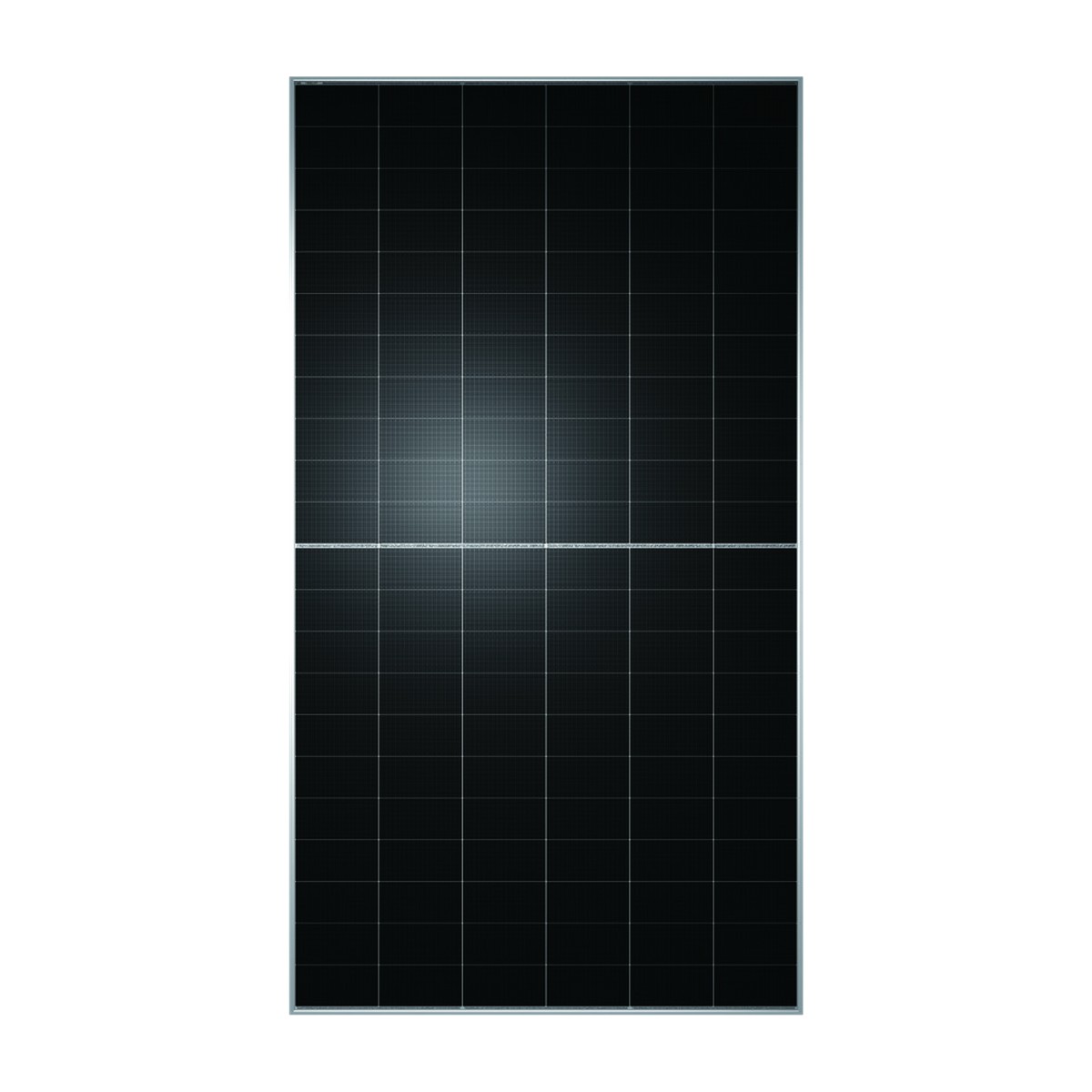

TW Solar TWMNF-66HD720W

720W N-type Bifacial Module

720WSTC
N-typecells
Bifacialmodule
23.2%efficiency
2384×1303mmH×W
37.3kgweight
33 pcsper pallet
12/30 yearswarranty product/power

The TW Solar TWMNF-66HD720W (TWMNF 66HD series) is an N-type half-cell bifacial module with 132 TNC cells, applicable to utility-scale PV plants. It is covered by a 12-year material warranty and a 30-year linear power warranty.

TW Solar modules are made by Tongwei Co., Ltd. (Shanghai Stock Exchange 600438), headquartered in Chengdu, China.

Key features

Applicable to utility-scale PV plants
TNC N-type cells, 132 half-cells
Dual 2.0 mm glass
12-year material warranty, 30-year linear power warranty

Technical data

Maximum power Pmax (STC)	720W
Open-circuit voltage Voc (STC)	49.28V
Short-circuit current Isc (STC)	18.55A
Voltage at Pmax Vmp (STC)	41.03V
Current at Pmax Imp (STC)	17.55A
Module efficiency	23.2%
Power output tolerance	0~+3%
Max. system voltage	1500V DC
Max. series fuse rating	35A
Temperature coefficients	Pmax: -0.28%/°C · Voc: -0.24%/°C · Isc: 0.046%/°C
Cells	132 (TNC (N-type))
Glass	dual glass, 2.0 mm AR coating semi tempered glass (front) / 2.0 mm semi tempered glass (rear)
Junction box	IP68, 3 diodes
Dimensions / weight	2384 × 1303 × 33mm / 37.3kg
Packaging	33 pcs per pallet
Warranty	12 years product / 30 years power output

Sold in packs of 10 pcs (MOQ); a full pallet is 33 pcs.

Downloads

Datasheet

Datasheet TWMNF-66HD720WEN4.4 MB

Technical Data

Power	720Wp
Cells	66
Pallet	33pcs
Technology	N-type
