TW Solar TWMNH-66HD625W

Availability:

in stock

Delivery: choose country of delivery

Price: € 83.60

Net Price (without VAT)

Regular price:

83.60

* Quantity:

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Producer:

ID: TW-SOLAR-TWMNH-66HD625W

Product

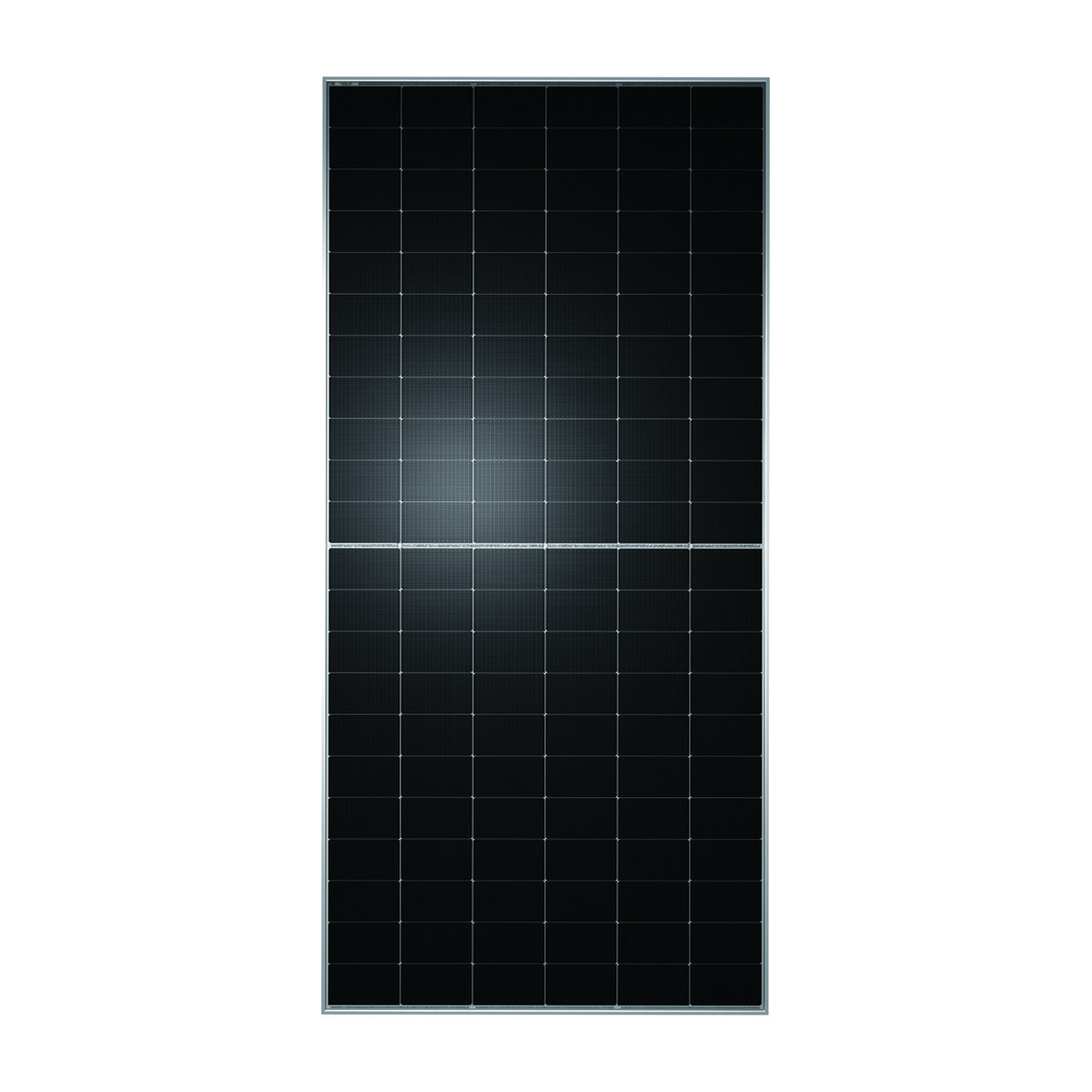

TW Solar TWMNH-66HD625W

625W N-type Bifacial Module

625WSTC
N-typecells
Bifacialmodule
23.1%efficiency
2382×1134mmH×W
32.2kgweight
36 pcsper pallet
12/30 yearswarranty product/power

The TW Solar TWMNH-66HD625W (TWMNH 66HD series) is an N-type half-cell bifacial module with 132 TNC cells, applicable to utility-scale PV plants and C&I rooftops. It is covered by a 12-year material warranty and a 30-year linear power warranty.

TW Solar modules are made by Tongwei Co., Ltd. (Shanghai Stock Exchange 600438), headquartered in Chengdu, China.

Key features

Applicable to utility-scale PV plants and C&I rooftops
TNC N-type cells, 132 half-cells
Dual 2.0 mm glass
12-year material warranty, 30-year linear power warranty

Technical data

Maximum power Pmax (STC)	625W
Open-circuit voltage Voc (STC)	49.3V
Short-circuit current Isc (STC)	16.12A
Voltage at Pmax Vmp (STC)	40.96V
Current at Pmax Imp (STC)	15.26A
Module efficiency	23.1%
Power output tolerance	0~+3%
Max. system voltage	1500V DC
Max. series fuse rating	30A
Temperature coefficients	Pmax: -0.28%/°C · Voc: -0.24%/°C · Isc: 0.046%/°C
Cells	132 (TNC (N-type))
Glass	dual glass, 2.0 mm AR coating semi tempered glass (front) / 2.0 mm semi tempered glass (rear)
Junction box	IP68, 3 diodes
Dimensions / weight	2382 × 1134 × 30mm / 32.1kg
Packaging	36 pcs per pallet
Warranty	12 years product / 30 years power output

Sold in packs of 10 pcs (MOQ); a full pallet is 36 pcs.

Downloads

Datasheet

Datasheet TWMNH-66HD625WEN4.5 MB

Technical Data

Power	625Wp
Cells	66
Pallet	36pcs
Technology	N-type
