Sungrow SBH150

Availability:

in stock

Delivery: choose country of delivery

Price: € 5,641.46

Net Price (without VAT)

Regular price:

5641.46

quantity pcs.

product unavailable

add to wish list

Producer:

ID: Sungrow-SBH150

Product

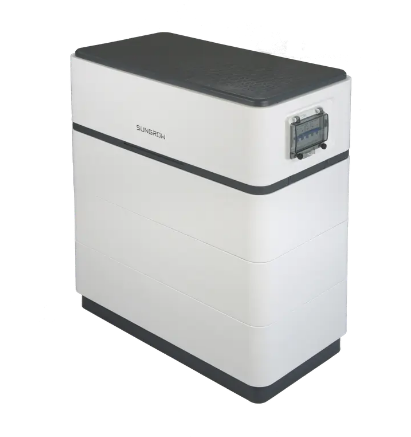

Sungrow SBH150

15kWh usable HV Battery System

HVbattery
15kWhusable
211.2Vnominal
LFPchemistry
IP55protection
10 yearswarranty
151kgpalletized shipping

The Sungrow SBH150 is a high-voltage LFP battery of the Sungrow SBH series built from 5.0 kWh modules: 2 to 8 modules per unit and up to 4 units in parallel give a capacity range of 10 to 160 kWh. It supports up to 50 A continuous charging and discharging current and up to 100 % usable energy. The modules connect plug and play, with no cables needed between them.

Sungrow, founded in 1997 in Hefei, China, has been listed on the Shenzhen Stock Exchange (300274) since 2011.

Key features

2–8 modules per unit, up to 4 units in parallel
Up to 50 A continuous charging and discharging current
Up to 100 % usable energy (DoD settable)
Plug and play, no cables between battery modules
IP55 for indoor and outdoor installation
10 years warranty

Technical data

Usable energy (100% DoD)	15kWh
Nominal voltage	211.2V
Operating voltage range	178.2–240.9V
Rated DC power	10.56kW
Battery modules	3
Protection	IP55
Discharge temperature	-20 to +50°C
Weight	151kg
Certifications	CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50
Warranty	10 years

Set contents: 3 × battery module 5.0 kWh (45 kg).

Downloads

Datasheet

Datasheet SBH150EN234 KB

Technical Data

Capacity	150kWh
Battery voltage	HV
Form	Module

Safety

€ 12,353.66
