Product

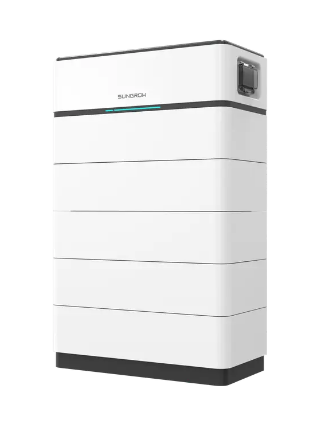

Sungrow SBH350

35kWh usable HV Battery System

  • HVbattery
  • 35kWhusable
  • 492.8Vnominal
  • LFPchemistry
  • IP55protection
  • 10 yearswarranty
  • 331kgpalletized shipping

The Sungrow SBH350 is a high-voltage LFP battery of the Sungrow SBH series built from 5.0 kWh modules: 2 to 8 modules per unit and up to 4 units in parallel give a capacity range of 10 to 160 kWh. It supports up to 50 A continuous charging and discharging current and up to 100 % usable energy. The modules connect plug and play, with no cables needed between them.

Sungrow, founded in 1997 in Hefei, China, has been listed on the Shenzhen Stock Exchange (300274) since 2011.

Key features

  • 2–8 modules per unit, up to 4 units in parallel
  • Up to 50 A continuous charging and discharging current
  • Up to 100 % usable energy (DoD settable)
  • Plug and play, no cables between battery modules
  • IP55 for indoor and outdoor installation
  • 10 years warranty

Technical data

Usable energy (100% DoD)35kWh
Nominal voltage492.8V
Operating voltage range415.8–562.1V
Rated DC power24.64kW
Battery modules7
ProtectionIP55
Discharge temperature-20 to +50°C
Weight331kg
CertificationsCE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50
Warranty10 years

Set contents: 7 × battery module 5.0 kWh (45 kg).

Downloads

Datasheet

Technical Data

Battery voltage HV
Form Module

Safety
