Product

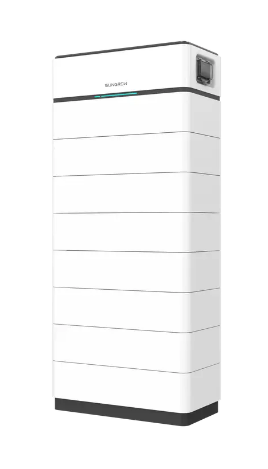

Sungrow SBH400

40kWh usable HV Battery System

  • HVbattery
  • 40kWhusable
  • 563.2Vnominal
  • LFPchemistry
  • IP55protection
  • 10 yearswarranty
  • 376kgpalletized shipping

The Sungrow SBH400 is a high-voltage LFP battery of the Sungrow SBH series built from 5.0 kWh modules: 2 to 8 modules per unit and up to 4 units in parallel give a capacity range of 10 to 160 kWh. It supports up to 50 A continuous charging and discharging current and up to 100 % usable energy. The modules connect plug and play, with no cables needed between them.

Sungrow, founded in 1997 in Hefei, China, has been listed on the Shenzhen Stock Exchange (300274) since 2011.

Key features

  • 2–8 modules per unit, up to 4 units in parallel
  • Up to 50 A continuous charging and discharging current
  • Up to 100 % usable energy (DoD settable)
  • Plug and play, no cables between battery modules
  • IP55 for indoor and outdoor installation
  • 10 years warranty

Technical data

Usable energy (100% DoD)40kWh
Nominal voltage563.2V
Operating voltage range475.2–642.4V
Rated DC power28.16kW
Battery modules8
ProtectionIP55
Discharge temperature-20 to +50°C
Weight376kg
CertificationsCE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50
Warranty10 years

Set contents: 8 × battery module 5.0 kWh (45 kg).

Downloads

Datasheet

Technical Data

Battery voltage HV
Form Module

Safety
